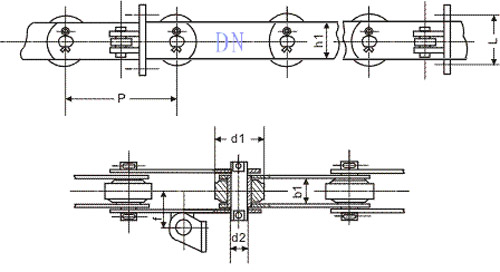

一、制糖输送机牵引链简图：
二、制糖输送机牵引链安装尺寸与技术特性表：
链号Chain Number |
节距Pmm |
内节内宽b1mm |
滚子直径d1mm |
销轴直径d2mm |
链板高度h1mm |
刮板孔距Lmm |
横向距离fmm |
抗拉载荷QKN |
备注Note |
1901 |
100 |
28 |
55 |
16 |
40 |
60 |
50 |
100 |
Q/TJ22-75-1 |
1902 |
130 |
32 |
55 |
16 |
40 |
100 |
46 |
126 |
|
1903 |
150 |
32 |
65 |
20 |
50 |
100 |
50 |
120 |
Q/TJ22-75-2 |
1904 |
150 |
32 |
65 |
20 |
50 |
100 |
54 |
120 |
Q/TJ22-75 -2A |
1905 |
156 |
38 |
70 |
16 |
40 |
100 |
55 |
126 |
|
1906 |
200 |
35 |
50 |
16 |
30 |
80 |
46 |
JQ058(7)16 |
|
1907 |
200 |
36 |
72/84 |
22 |
56 |
100 |
65 |
160 |
Q/TJ22-75-3 |
1908 |
250 |
36 |
72 |
22 |
56 |
100 |
65 |
160 |
Q/TJ22-75-4 |
1909 |
250 |
38 |
75/85 |
16 |
40 |
100 |
55 |
126 |
D50002-5004 |
1910 |
250 |
44 |
90/100 |
20 |
50 |
100 |
65 |
182 |
D50001-50017 |
1911 |
250 |
44 |
90/100 |
20 |
50 |
100 |
67 |
182 |
