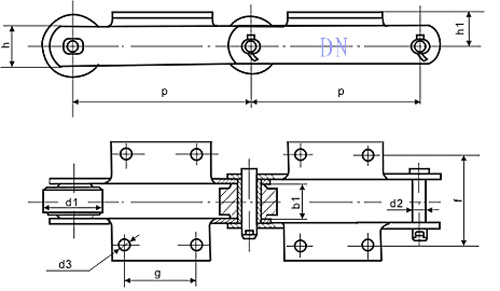

一、链斗机链条简图：
二、链斗机链条安装尺寸与技术特性表：
链号Chain Number |
节距Pmm |
内节内宽b1mm |
滚子直径d1mm |
销轴直径d2mm |
链板高度hmm |
平台高度h1mm |
横向距离fmm |
附件孔距gmm |
附件孔径d3mm |
抗拉载荷QKN |
备注Note |
101 |
100 |
32 |
27 |
15 |
40 |
26 |
112 |
70 |
13 |
160 |
355 |
102 |
100 |
45 |
40 |
20 |
56 |
36 |
155 |
70 |
长孔 17 |
380 |
703 |
103 |
100 |
31 |
25 |
12 |
40 |
35 |
96 |
50 |
12 |
130 |
M80 |
104 |
125 |
50 |
52 |
24 |
60 |
40 |
250 |
120 |
21.5 |
||
105 |
152.4 |
36.5 |
34.9 |
15.5 |
50 |
38 |
120 |
60 |
13 |
250 |
|
106 |
200 |
54 |
50.8 |
25 |
65 |
71 |
150 |
85 |
19 |
450 |
|
107 |
300 |
52 |
76 |
31.7 |
76 |
62 |
180 |
120 |
18 |
800 |
402 |
108 |
200 |
32 |
30 |
15 |
41 |
40 |
110 |
65 |
14 |
112 |
|
109 |
200 |
42 |
42 |
20 |
60 |
55 |
140 |
65 |
18 |
224 |
|
110 |
250 |
42 |
42 |
21 |
62 |
55 |
140 |
65 |
16 |
224 |
|
111 |
315 |
49 |
50 |
25 |
70 |
65 |
160 |
100 |
18 |
315 |
|
112 |
200 |
52 |
110 |
36 |
90 |
45 |
146 |
单孔 |
18 |
HB-4 |
|
113 |
300 |
58 |
100 |
22 |
64 |
56 |
159 |
120 |
15 |
315 |
S003 S004 |
114 |
160 |
44 |
45 |
30 |
80 |
50/75 |
150 |
50 |
14.5 |
600 |
54-0904 ( 无滚子） |
