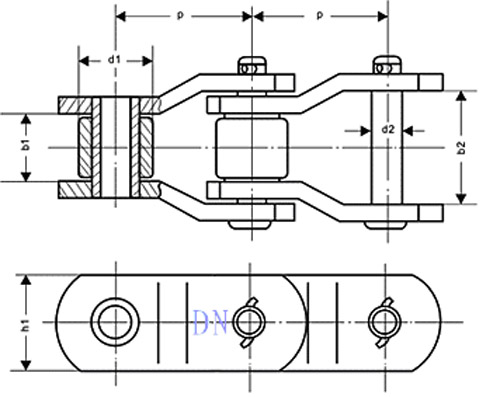

一、非标准弯板滚子链简图：
二、非标准弯板滚子链安装尺寸与技术特性表：
链号Chain Number |
节距Pmm |
窄端内宽b1mm |
滚子直径d1mm |
销轴直径d2mm |
链板高度h1mm |
宽端内宽b2mm |
抗拉载荷QKN |
备注Note |
1801 |
63.5 |
38.1 |
31.75 |
15.9 |
47.8 |
54.51 |
不锈钢 |
|
1802 |
78.1 |
40 |
40 |
17 |
55 |
300 |
||
1803 |
78.18 |
38.1 |
33 |
17 |
45 |
60.1 |
320 |
|
1804 |
80 |
38 |
36 |
17 |
45 |
300 |
||
1805 |
88.9 |
38 |
45 |
24 |
60 |
600 |
||
1806 |
89.8 |
20 |
42 |
13 |
50 |
|||
1807 |
103.2 |
49 |
46 |
23 |
60 |
83.2 |
635 |
|
1808 |
140 |
80 |
55 |
36 |
90 |
122 |
1200 |
|
1809 |
140 |
80 |
65 |
36 |
90 |
1500 |
加强型 |
|
1810 |
153.6 |
78.4 |
44.45 |
25.4 |
50 |
|||
1811 |
203.2 |
249.7 |
35 |
20 |
40 |
无滚子焊接 |
||
1812 |
77.9 |
40 |
41 |
20.7 |
57 |
63.5 |
320 |
|
1813 |
95.25 |
38.5 |
44.5 |
23.5 |
60 |
69.5 |
440 |
|
1814 |
96 |
40 |
47 |
23.85 |
65 |
72.5 |
500 |
|
1815 |
103.2 |
26 |
55 |
18 |
50 |
44 |
不锈钢无套筒偏心 |
|
1816 |
130 |
24 |
55 |
17.7 |
50 |
42 |
不锈钢无套筒偏心 |
