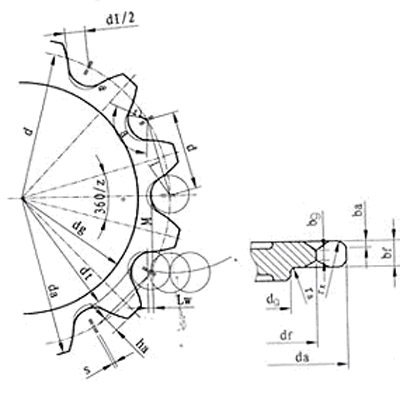

一、国标输送链链轮简图：
二、国标输送链链轮安装尺寸与技术特性表：
配用链条(S.P) |
轴面齿形Axial Surface tooth type |
备注 |
||||||
节距Pmm |
滚子直径d1mm |
内节内宽b1mm |
倒角宽bamm |
齿宽bfmm |
齿沟圆弧半径r1mm |
齿根宽bgmm |
倒角半径rxmm |
|
63,80,100,125 |
25 |
15 |
2.4 |
12 |
12.5 |
3 |
24 |
对 F 型链条齿宽 bf 等于内节内宽 b1 减边缘宽度 b11 的百分之八十作减 1.3mm |
80,100,125,160 |
30 |
17 |
2.7 |
13.7 |
14.5 |
3.4 |
27 |
|
100,125,160,200 |
36 |
19 |
3 |
16 |
18 |
4 |
30 |
|
125,160,200,250 |
42 |
23 |
3.7 |
19.5 |
21 |
4.8 |
37 |
|
125,160,200,250 |
50 |
27 |
4.3 |
22.5 |
25 |
5.6 |
43 |
|
125,160,200,250 |
60 |
31 |
5 |
26 |
30 |
6.5 |
50 |
|
160,200,250,315 |
70 |
36 |
5.8 |
30.5 |
35 |
7.6 |
58 |
|
160,200,250,315 |
85 |
42 |
6.7 |
35.8 |
42.5 |
9 |
67 |
|
200,250,315,400 |
100 |
47 |
7.5 |
37.6 |
50 |
9.4 |
75 |
|
200,250,315,400 |
120 |
55 |
8.8 |
47.3 |
60 |
11.8 |
88 |
|
250,315,400,500 |
140 |
65 |
10.4 |
51.8 |
70 |
13 |
104 |
|
250,315,400,500 |
170 |
76 |
12.2 |
66 |
85 |
16.5 |
122 |
|
