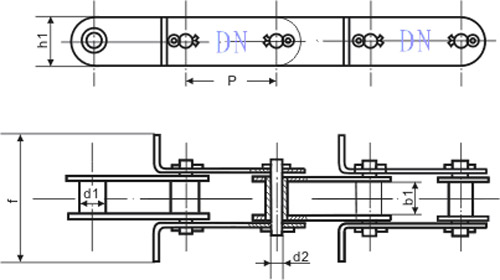

一、双侧刮板输送链简图：
二、双侧刮板输送链安装尺寸与技术特性表：
链号Chain Number |
节距Pmm |
内节内宽b1mm |
滚子直径d1mm |
销轴直径d2mm |
链板高度h1mm |
横向距离fmm |
抗拉载荷QKN |
备注Note |
901 |
101.6 |
28 |
22.2 |
11.3 |
28 |
184 |
135 |
|
902 |
125 |
27 |
25 |
12 |
36 |
145 |
80 |
M S 16 |
903 |
125 |
27 |
25 |
12 |
36 |
185 |
80 |
M S 20 |
904 |
160 |
34 |
35 |
22 |
50 |
230 |
160 |
GSS25-09 |
905 |
160 |
36 |
36 |
18 |
51 |
300 |
160 |
GSS32-09 |
906 |
200 |
52 |
44 |
20 |
60 |
370 |
GSS40.09 |
|
907 |
200 |
48 |
50 |
25 |
72 |
380 |
310 |
GSS50.09 |
908 3 |
200 |
42 |
42 |
21 |
62 |
370 |
224 |
GSS40.09 |
909 4 |
200 |
47 |
50 |
25 |
72 |
310 |
315 |
GSS32.10 |
910 |
200 |
48 |
50 |
25 |
72 |
480 |
310 |
GSS 50A -1-09 |
911 |
66.68 |
27 |
22.3 |
12.6 |
29 |
128.5 |
100 |
MSB25(32) |
912 |
66.68 |
27 |
25 |
15 |
36 |
13.05 |
140 |
MSB40 |
913 |
100 |
28 |
22 |
16 |
38 |
230 |
112.7 |
TGSS25.5 |
914 |
100 |
28 |
22 |
16 |
38 |
180 |
112.7 |
TGSS20.5 |
915 |
100 |
28 |
22 |
16 |
38 |
210 |
112.7 |
TGSS25.5(A2) |
916 |
100 |
28 |
22 |
16 |
46 |
230 |
115 |
TGSS25.5(A1) |
917 |
100 |
28 |
22 |
16 |
38 |
140 |
112.7 |
TGSS16.5 |
918 |
125 |
36 |
25 |
18 |
51 |
300 |
220 |
TGSS32.5 |
919 |
150 |
36 |
26 |
18 |
45 |
230 |
- |
B230-150 |
920 |
150 |
46 |
30 |
20 |
50 |
480 |
- |
B500-150 |
921 |
150 |
46 |
30 |
20 |
50 |
230 |
- |
B800-150 |
922 |
150 |
36 |
26 |
18 |
45 |
330 |
- |
B350-150 |
923 |
150 |
43 |
31 |
18 |
40 |
233 |
100 |
- |
924 |
150 |
43 |
32 |
19 |
45 |
228 |
140 |
|
925 |
200 |
42 |
42 |
21 |
62 |
370 |
350 |
TGSS40 |
926 |
200 |
48 |
50 |
25 |
72 |
480 |
450 |
TGSS50 |
927 |
200 |
48 |
50 |
25 |
72 |
600 |
450 |
TGSS63 |
